Slope Ceiling Lit Exit, Double Face Self Diagnostic
Slope Ceiling Lit Exit, Double Face Self Diagnostic

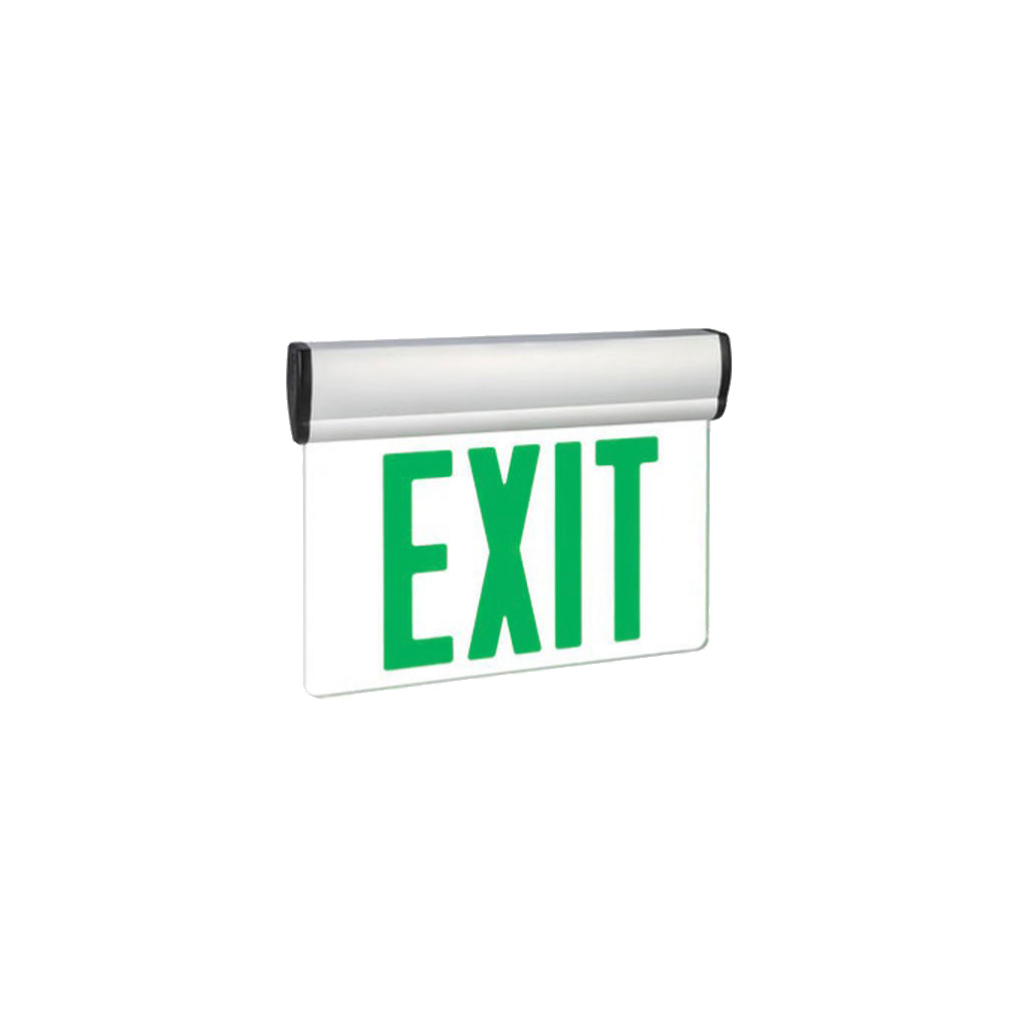

This LED Double Face Green Exit Sign contains an internal battery, which automatically goes on if normal utility power fails.
- High impact clear acrylic thermoplastic faceplate.
- Double mirrored finish face plate.
- Compact, low profile edge-lit design.
- Completely Self-contained.
- 120 Volts/277 Volts.
- Operating temperature from 0 degrees C (32F) to 50 degrees C (122F).
- Automatic, low voltage disconnect protects battery from deep discharge.
- Green color lettering and Brushed Aluminum housing.
- Energy consumption of less than 5W.
- Monitors battery disconnection, charger failure, lamp failure and transformer fault every 5 seconds.
- One minute self-test monthly, 30 minute self-test semi-annually, 90 minute self-test annually.
- Uses dual color LED Lamp to indicate lamp, battery and charger status.
- UL Listed for damp location.

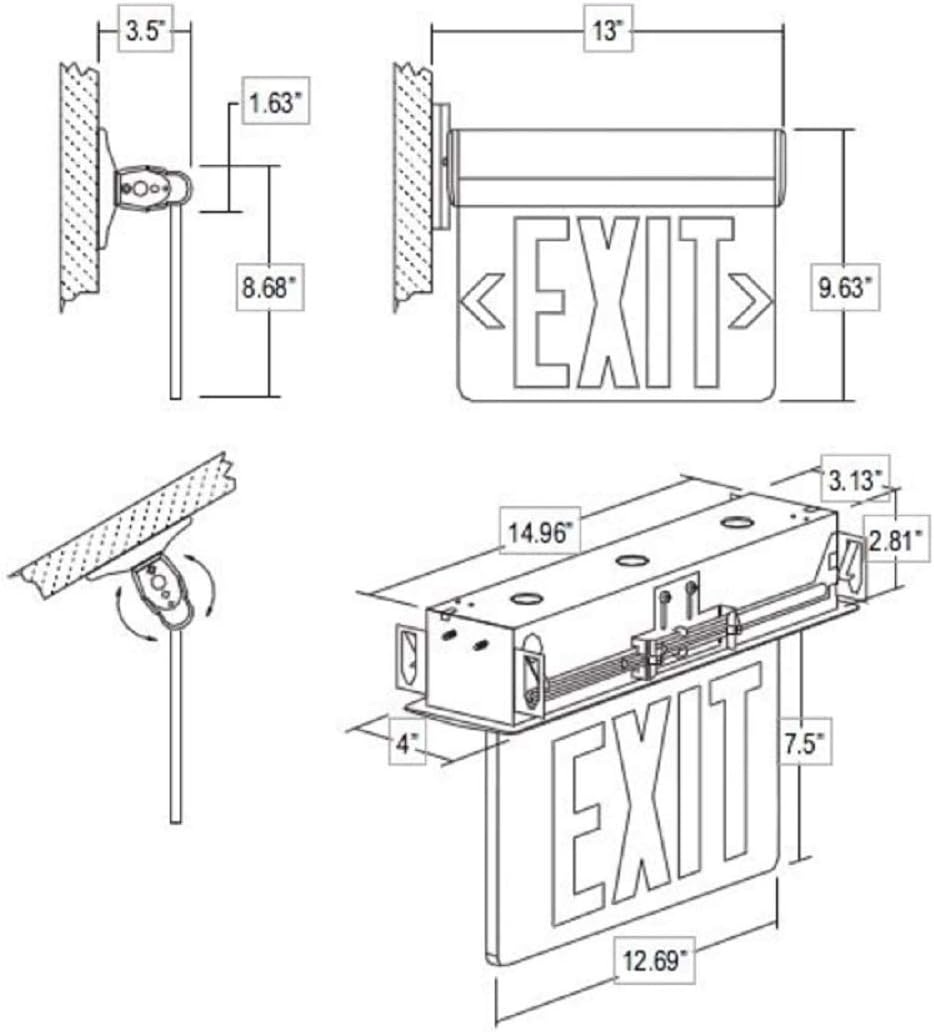

- Dimensions: 9.75" H x 12.75" W
